Technical data and configuration
Perhaps the lightest caravan in its class -
without Limitations!
"Our caravans are trimmed for useful properties"
Our most important data
- You can see the outer dimensions and the layouts in millimeters (mm) in the drawing on the left
- Permissible total weight 750 kg
- Load, depending on accessories 150-250 kg
- sleeping places 3
- max. drawbar load up to 75 kg
- Water tanks 2 x 12 l
- hinged window 3
- Body aluminum smooth sheet (aluminium silver), ABS (traffic white)
- Bed size rear 195 cm x 140 cm
- Bed size front approx. 195 cm x 85 cm
Our prices incl. VAT *
FAMA Fast with a fixed bed in the back €20,540.00
FAMA Fast with convertible bed in the back €23,450.00
* Non-binding target prices, which may vary due to the current situation, any errors in the description do not result in a legal claim, subject to change, only current offers are binding!
standard accessories*
- 67L High Efficiency Compressor Fridge (12V)

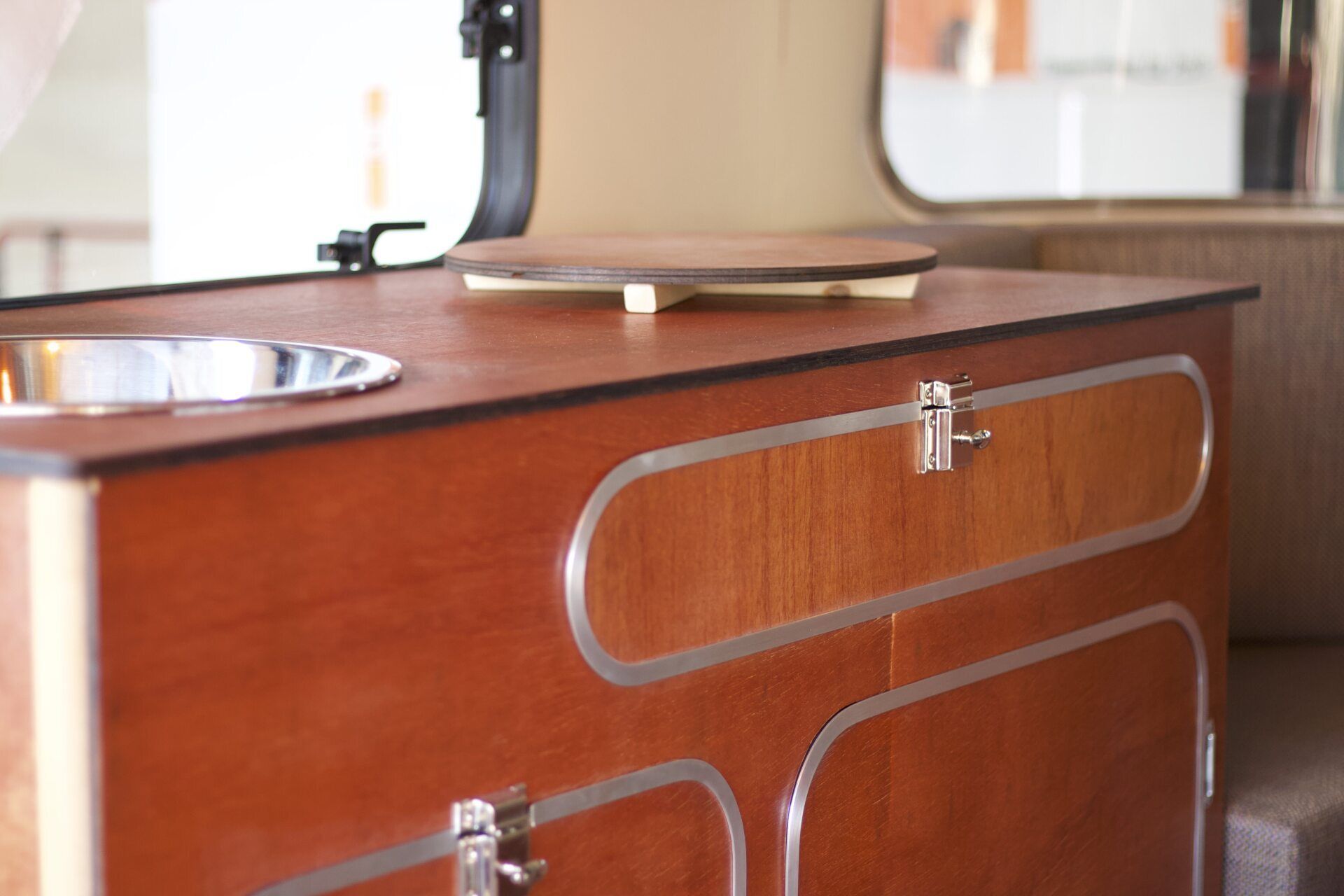

- Stainless steel water basin with cover
- One-flame, removable gas cooker with piezo ignition, can also be used outside
- Pull-out "apothecary cabinet" for easy access to the contents
- Spacious wardrobe, storage compartments and spacious wall units
- Beds with slatted frame, foldable (only with fixed bed variant in the rear)
- Front bed conversion possible. Upholstery cores adapted for maximum sleeping or sitting comfort
- High-quality, hard-wearing upholstery fabrics
- All-round curtains and curtains with blackout function
- 3 large, lightly tinted, double-glazed top-hung windows, front, rear and left
- 2 orange, hinged roof hatches for nice light and good ventilation
- Two-part entrance door ("Klöntür"/"Pferdestalltür")
- Drawer for camping toilet
- Self-priming autoclave pump with pressure switch for water supply
- 12 liter water canister, easy to carry and fill
- 12V self-sufficient system with charger, controller, fuse and 100Ah battery, external degassing with non-return valve
- FI-secured 230 V system with selector switch 10 A or 16 A to adapt to existing 230 V fuse
- 3 ceiling lights (12V) outdoor or awning light (12V)
- 3 220V sockets (1 x kitchen, 2 x seating area in front)
- Low-maintenance chassis components, hot-dip galvanized chassis, auto reverse brakes
- Long drawbar for low vertical load, higher driving safety and space for bicycle carriers, for example
- Driving safety thanks to specially sprung chassis with shock absorbers
- 145/80R13 78N tires on steel rims for low rolling resistance
- 13 pin connector
- TÜV approval and vehicle registration
Optional accessories **
- Underfloor heating front with digital control element ---------------------------- €650.00
- Underfloor heating in the rear (not with fixed bed in the rear) ----------------------------- €500.00
- Diesel parking heater, removable -------------------------------------------------- - €1,690.00
- Additional gas cooker -------------------------------------------------- -------------------- 6€4.00
- Heating attachment for gas cooker -------------------------------------------------- ------------------ €25.00
- 2 USB charging sockets with battery charge level indicator ----------------------------- €54.00
- Outside socket 12V, 220V, TV / SAT preparation --------------------------------- €265.00
- Adapter 13/7 pin short -------------------------------------------------- --------------------------------------- €14.78
- Camping toilet with environmentally friendly additive ---------------------------------- €118.00
- 1 x 12 liter water canister, easy to carry and fill --------------------- €25.50
- Outdoor shower with shuttle valve -------------------------------------------------- -------- €65.00
- Collapsible trash can for door mounting -------------------------------------------------- -- €24.00
- Special upholstery fabric -------------------------------------------------- ----------------------- €360.00
- Special coating on the lower part in the color of your choice ----------------------------- €1,200.00
- chrome hubcaps -------------------------------------------------- --------------------------- €125.00
- VA hubcaps with whitewall rings -------------------------------------------------- €280.00
- Underfloor spare wheel compartment with spare wheel (reduced payload!) ------------ €375.00
- Preparation for hitch bike carrier ------------------------------------------------------ €175.00
- Ball head cap, cannot be lost in connector holder ---------------------------------- €9.45
- Nose wheel maneuvering handle for easier manoeuvring --------------------------------------- €27.50
- Support crank 100/760/SW19 -------------------------------------------------- ------------- €25.00
- Upgrading to 900 kg -------------------------------------------------- ------------------- €430.00
* Non-binding target prices, which may vary due to the current situation, any errors in the
Description does not result in a legal claim, subject to change, only current offers are binding!
Are you interested in our caravan or
Do you have any further questions?
Feel free to give us a call! We will advise you personally and take your order.
